| Place of Origin: | china |
| Brand Name: | hawit |
| Certification: | ISO9001 CE |
| Model Number: | Glory |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Boxes,Vacuum Aluminum Packing |
| Supply Ability: | 2000 sets per year |
| Model: | Glory-4 | Type: | Tea Color Sorting Machine |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Video Technical Support | Warranty: | 1 Year |
| Voltage: | 220V/50HZ | Power: | 2.4 Kw |
| Capacity: | 4-8 T/h | Channels: | 256 |
| Weight: | 955 Kg | Dimension: | 2232*1764*2341 Mm |
| High Light: | Remote Interconnection Tea Color Sorter,Optical Tea Color Sorter,CCD Camera Tea Color Sorter |
||

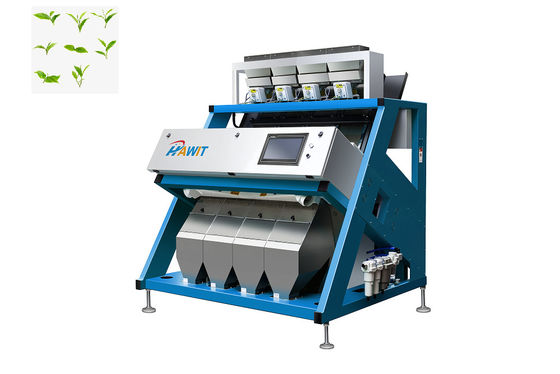

Tea Color Sorter Features:
Customized image algorithm
Advanced image algorithm, which can customize specific algorithm according to different sorting materials: color sorting and shape sorting available.
Full color CCD cameras
Angelon vision system converts the captured targets into image signals through CCD cameras, and then transmits the signals to a dedicated image processing system.
The 2048*∞ pixels grade high resolution CCD color cameras with sharpness up to 0.01mm2 can identify subtle color differences and defects successfully.
Lower damage ratio by Belt-type structure design
Horizontal transporting by uniform and stable conveyor makes less collision for the materials. So that its damage ratio is much lower than that of traditional chute-type color sorter.
Intelligent real-time display of actual material image
Real-time checking the targets marking situation is available on the 21-inch LED computer screen through the real-time display system of actual material image, which is easy for engineers to adjust sorting parameters both on site and by remote.
Long life and full color LED light source
With uniform color, high brightness, and long life when using the white LED light source in our full colored color sorters.
Remote interconnection system
Remotely diagnoses each color sorter and assist with equipment operation are available after obtaining customers’ authorization.
Precise target technology
Accurately identify materials’ defects and impurities, and blow the target defects through the combination of the latest CCD cameras and target positioning program, which can increase the sorting accuracy and reduce the optimized carryover a lot.
High-quality customized valves
With high frequency and strong motivation, they can accurately blow off some high density materials like minerals, waste metal flakes, etc.
Uniform feeding system
Different vibrators are used for different materials. Angelon used motor vibrators and electromagnetic vibrators to ensure smooth feeding for different materials.
Technical Parameters
| Model | Throughput(t/h) | Channel number |
Sorting Accuracy(%) |
Power (kw) |
Power Supply | Demension L*W*H(mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| Glory-4 | 3 ~ 6 | 256 | >99.99% | 3.4 | 110-220V/50HZ-60HZ | 2232*1764*2341 | 955 |
| Glory-5 | 4 ~ 8 | 320 | >99.99% | 4.0 | 110-220V/50HZ-60HZ | 2546*1764*2341 | 1120 |
| Glory-6 | 5 ~ 8 | 384 | >99.99% | 4.6 | 110-220V/50HZ-60HZ | 2860*1764*2341 | 1285 |
| Glory-7 | 5 ~ 10 | 448 | >99.99% | 5.1 | 110-220V/50HZ-60HZ | 3174*1764*2341 | 1460 |
2546
| Color Sorter Applications | |
| Beans | kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea |
| Tea | green tea/black tea/dark tea/white tea/ yellow tea |
| Cereals | corn/barley/wheat/oat/sesame/malt |
| Seeds | cotton seed/corn seed/wheat seed/pepper seed/onion seed |
| Nuts & Kernels | sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio |
| Industrial Goods | quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl |
| Economic Crops | raisin/medlar/lily/red date/shrimp bran/tobacco/agaric |
Packaging & Shipping
Inner packing is vaccuum-packed with aluminum foil.
External packing is fumigation-free wood packages.
Suit for long sea voyage.
After Sales Services
Free software upgrade services for our customers lifelong.
One year warranty and free maintenance.
Engineers available to service machinery overseas.
