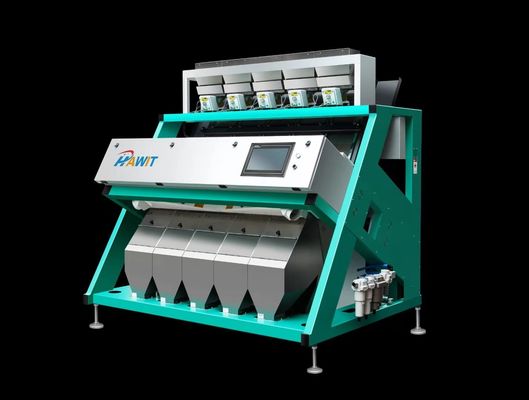

220V 50HZ 5400 Pixel CCD Infrared Sorting Machine

220V 50HZ 5400 Pixel CCD Infrared Sorting Machine

  • 220V 50HZ 5400 Pixel CCD Infrared Sorting Machine
220V 50HZ 5400 Pixel CCD Infrared Sorting Machine
Product Details:
Place of Origin: china
Brand Name: hawit
Certification: ISO9001 CE
Model Number: IR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Boxes,Vacuum Aluminum Packing
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Model: IR-4 Type: Infrared Color Sorting Machine
Ejector: SMC Warranty: 1 Year
Voltage: 220V/50HZ Power: 3.4 Kw
Capacity: 3-6 T/h Channels: 256
Weight: 955KG Dimension: 1912*1574*2090
High Light:

CCD Infrared Sorting Machine


5400 Pixel Infrared Sorting Machine


256 Channels Infrared Sorting Machine

Glasses sorting by using infrared technology with high sorting perfornance​ For Processing Grains / Plastic / Glasses


   Product Description:


1.There are two sets of light paths inside the vertical machine: visible light path and infrared light path.


2.The visible light path is similar to the common color color color sorter, which mainly realizes sorting according to the color difference and shape difference of materials;


3.The infrared light path can realize sorting according to the material difference.


4.The infrared light path of the model has been upgraded.


5.It extracts the infrared signals of two bands of materials at the same time.


6.By comparing the infrared signals of the two bands, the influence of material thickness, angle and ambient light on the infrared camera can be eliminated, so that the material identification is more accurate and can be applied to more complex materials.


7. A set of infrared light source is installed in the front and rear separation boxes of the machine to illuminate the materials. At the same time, two infrared InGaAs cameras are installed at the front and rear of each channel. They can respectively obtain two band infrared signals of the two surfaces of the material before and after the material. It can identify the material difference of the complex non-material and realize the sorting.


8. This machine is mainly used for complex non-homogeneous materials, such as removing nut shell, stem, stone, soil block and other impurities from nut kernel at the same time. It is very suitable for almond, almond, hickory, big walnut, pecans, macadamia nut, hazelnut, chestnut, pistachio, peanut, sunflower seed and other materials.


Components Suppliers:

Camera Toshiba Full Color Camera CCD with 5400 pixel
Lens Phoenix customized industrial lens
Chip Intel and ATI brand DSP,FPGA
Power supply Mean Well
Power switch Schneider
Filter SMC



Technical Parameters

Model Throughput(t/h) Channel
Power Supply Demension L*W*H(mm) Weight
IR-4 3 ~ 6 256 >99.99% 3.4 110-220V/50HZ-60HZ 1912*1574*2090 955
IR-5 4 ~ 8 320 >99.99% 4.0 110-220V/50HZ-60HZ 2226*1574*2090 1120
IR-6 5 ~ 8 384 >99.99% 4.6 110-220V/50HZ-60HZ 2540*1574*2090 1285
IR-7 5 ~ 10 448 >99.99% 5.1 110-220V/50HZ-60HZ 2854*1574*2090 1460















Color Sorter Applications
Beans kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea green tea/black tea/dark tea/white tea/ yellow tea
Cereals corn/barley/wheat/oat/sesame/malt
Seeds cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Industrial Goods quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic Crops raisin/medlar/lily/red date/shrimp bran/tobacco/agaric




Packaging & Shipping


Inner packing is vaccuum-packed with aluminum foil.


External packing is fumigation-free wood packages.


Suit for long sea voyage.



After Sales Services


Free software upgrade services for our customers lifelong.


One year warranty and free maintenance.


Engineers available to service machinery overseas.


Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock
Q: Is engineer oversea service available?
A:Yes, Professional after-sales engineer is available to end-user's site for training & machine installation .
Q: Can we send samples for test?
Sample material for testing use is welcome. a working video will be offered for sorting result inspection.
