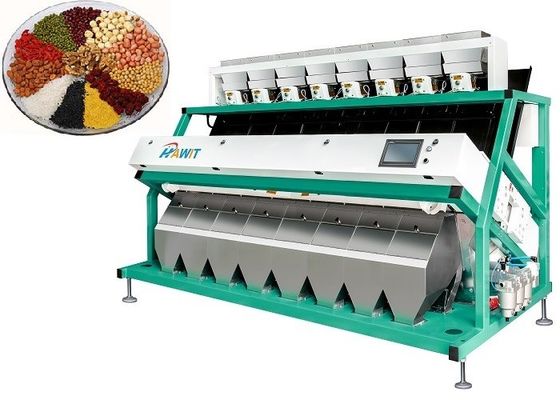

12t H 5K Camera Bean Color Sorter

12t H 5K Camera Bean Color Sorter

  • 12t H 5K Camera Bean Color Sorter
12t H 5K Camera Bean Color Sorter
Product Details:
Place of Origin: china
Brand Name: hawit
Certification: ISO9001 CE
Model Number: Glory
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Boxes,Vacuum Aluminum Packing
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Type: Grain Color Sorter Machine Model: Glory-8
Channels: 512 Light Source: All LED Lamps
Sorting Accuracy(%): ≥99.9% Voltage: 220V 50HZ
Capacity: 8-12 T/h Weight: 1640 Kg
Power: 4.7 Kw Dimension(l*w*h): 3168*1574*2090
High Light:

5K Camera Bean Color Sorter

,

12t H Bean Color Sorter

,

Bean Colour Sorter machine

Bean / Grain Color Sorter With 5K Camera Sensor 12t/H Capacity



Grain Color Sorter Machine Description

   Its working principle is to divide materials into different groups according to different colors, so as to improve the quality of materials. For example, it can classify moldy nuts, separate red plastic particles from mixed color groups, remove bad rice, etc.

   When the color sorter is working, the feeding hopper will evenly distribute the materials in each chute under the action of the vibrator, and then the camera will scan and calculate the fallen materials. If the unqualified materials or impurities are found in the materials, the ejector will blow the defective products into the hopper.



Technical advantages

Intelligent Dimming light source

Non-polar dimming, Shadow-less lighting, Matching the Optimum illumination brightness According to Marital Characteristic.



High Quality 5K Camera Ultra Clear Image, Minimum recognition accuracy 0.04 mm, making tiny defect be invisible.

SMC Imported Ejector From Japan



High quality, high frequency and long life; saving air consumption, electricity and energy.



SMC Air Filter System From Japan



Extraordinary Performance Due to “Tone” Fresh.



Multidimensional Stereo Specialized Algorithms



Unique Recognition Algorithms for Color, Shape, Texture and Angle, Comprehensive, multidimensional, Due to Professional So Powerful.



High Quality Image Processing System



New Generation of ARM+FPGA Processor Technology, Arithmetic Speed will be much faster.



Easy Operation Screen



Easy Machine Operate , You will be also sorting expert.



Fully Covered Dust Cleaning and Vacuum Cleaning System



Smoothly dust cleaning, strongly dust absorption, fully coverage, none dead angle, easy to handle with high dust environment.






Technical Parameters

Model Throughput(t/h) Channel
number
Sorting
Accuracy(%)
Power
(kw)
Power Supply Demension L*W*H(mm)

Weight
(kg)

Glory-1 0.5 ~ 0.9 64 >99 1.0 110-220V/50HZ-60HZ 1465*1126*1560 365
Glory-4 3 ~ 6 256 >99.99% 2.4 110-220V/50HZ-60HZ 1912*1574*2090 955
Glory-5 4 ~ 8 320 >99.99% 3.0 110-220V/50HZ-60HZ 2226*1574*2090 1120
Glory-6 5 ~ 8 384 >99.99% 3.6 110-220V/50HZ-60HZ 2540*1574*2090 1285
Glory-7 5 ~ 10 448 >99.99% 4.1 110-220V/50HZ-60HZ 2854*1574*2090 1460
Glory-8 8 ~ 12 512 >99.99% 4.7 110-220V/50HZ-60HZ 3168*1574*2090 1640
Glory-10 10 ~ 16 640 >99.99% 5.4 110-220V/50HZ-60HZ 3796*1574*2090 2000





































Sorting examples

12t H 5K Camera Bean Color Sorter 0






Color Sorter Applications
Beans kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea green tea/black tea/dark tea/white tea/ yellow tea
Cereals corn/barley/wheat/oat/sesame/malt
Seeds cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Industrial Goods quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic Crops raisin/medlar/lily/red date/shrimp bran/tobacco/agaric





After Sales Services
Free software upgrade services for our customers lifelong.
One year warranty and free maintenance.
Engineers available to service machinery overseas.





Packaging & Shipping

Inner packing is vaccuum-packed with aluminum foil.

External packing is fumigation-free wood packages.

Suit for long sea voyage.
