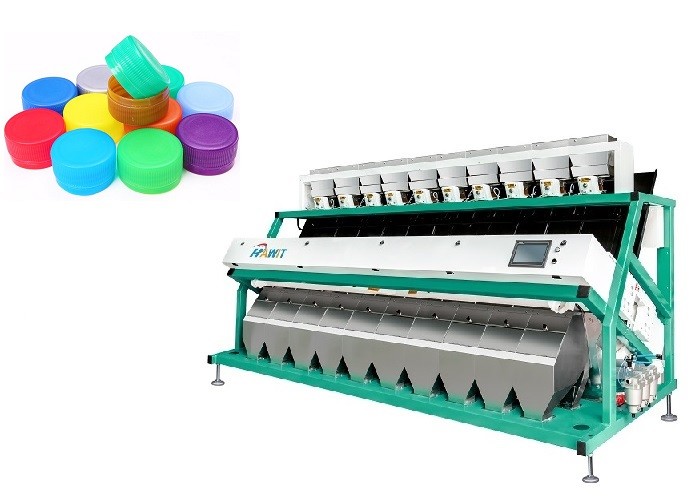

Multilevel 512 Channels Recycled Plastic Color Sorter

Multilevel 512 Channels Recycled Plastic Color Sorter

  • Multilevel  512 Channels Recycled Plastic Color Sorter
Multilevel  512 Channels Recycled Plastic Color Sorter
Product Details:
Place of Origin: china
Brand Name: hawit
Certification: ISO9001 CE
Model Number: Glory
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Boxes,Vacuum Aluminum Packing
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Name: Wheat Color Sorter Color: Green
Sorting Accuracy(%): >99.9% Voltage: 220V/50HZ
Warranty: 1 Years OEM: Yes
Filter: SMC Rejection: >10:1
Brand: Hawit Usage: Plastic Industry
High Light:

512 Channels Plastic Color Sorter

,

Recycled Plastic Color Sorter

,

1640kg Plastic Color Sorter machine

 High Capacity Recycled Plastic Color Sorter With Inteliigent Multilevel Sorting



    Its work principle Is according to materials' different color to separate them To different groups,to reach improve the materials quality.For example,it can sort moldy nuts out,it can separate red plastic particles from mixed different colors group, remove the bad rice,etc.



    When the color sorter is working, feed hopper under the action of vibrator will arrange the materials uniform distribution in each chute, Then camera will scan the falling materials and computing, If it found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods into the hopper.



High flexibility, wide range of application Our color sorter is suitable for color sorting of different rice. Various optimal working modes are available for different rice.



Feature



1. The high-end 5400 pixel CCD camera can distinguish the infinitely small spot, and improve the sorting level to a higher level.



2.  Scientific and reasonable optical design, clearer and wider resolution range.



3.  Reasonable heat output device ensures that all parts work at room temperature with better signal-to-noise ratio, which not only improves the sorting accuracy, but also extends the service life of the machine.



4.  More intelligent software can easily identify all kinds of heterochromatic seeds and improve the accuracy of selection.



5 .  humanized true color screen, the visual effect is clearer, the operation is easier.



6.  professional high-frequency injector, save more air, faster reaction speed, higher accuracy, longer life, with intelligent software, to ensure good nesting rate and excellent precision



7 . unique cooling mode to ensure the smooth operation of the machine



Model Throughput(t/h) Channel
number
Sorting
Accuracy(%)
Power
(kw)
Power Supply Demension L*W*H(mm) Weight
(kg)
Glory-1 0.5 ~ 0.9 64 >99 1.0 110-220V/50HZ-60HZ 1465*1126*1560 365
Glory-4 3 ~ 6 256 >99.99% 2.4 110-220V/50HZ-60HZ 1912*1574*2090 955
Glory-5 4 ~ 8 320 >99.99% 3.0 110-220V/50HZ-60HZ 2226*1574*2090 1120
Glory-6 5 ~ 8 384 >99.99% 3.6 110-220V/50HZ-60HZ 2540*1574*2090 1285
Glory-7 5 ~ 10 448 >99.99% 4.1 110-220V/50HZ-60HZ 2854*1574*2090 1460
Glory-8 8 ~ 12 512 >99.99% 4.7 110-220V/50HZ-60HZ 3168*1574*2090 1640
Glory-10 10 ~ 16 640 >99.99% 5.4 110-220V/50HZ-60HZ 3796*1574*2090 2000

































Examples of Sorting







Color Sorter Applications
Beans kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea green tea/black tea/dark tea/white tea/ yellow tea
Cereals corn/barley/wheat/oat/sesame/malt
Seeds cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Industrial Goods quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic Crops raisin/medlar/lily/red date/shrimp bran/tobacco/agaric





Multilevel  512 Channels Recycled Plastic Color Sorter 0






After Sales Services


Free software upgrade services for our customers lifelong.



One year warranty and free maintenance.



Engineers available to service machinery overseas.
