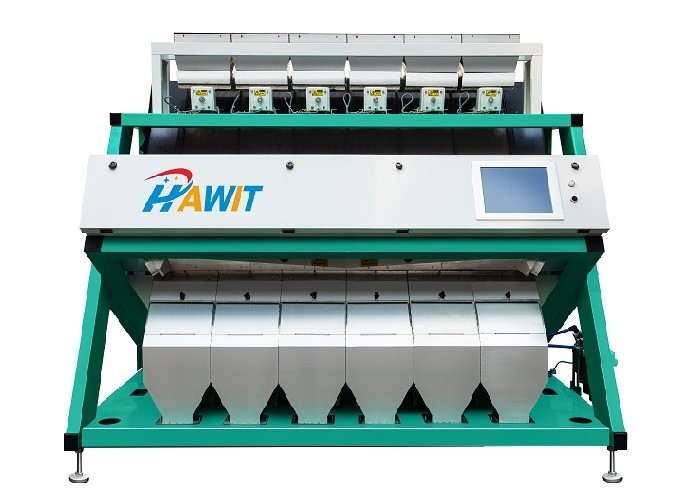

Fast Detection 4.1kw 2854mm Color Sorter Machine

Fast Detection 4.1kw 2854mm Color Sorter Machine

  • Fast Detection 4.1kw 2854mm Color Sorter Machine
Fast Detection 4.1kw 2854mm Color Sorter Machine
Product Details:
Place of Origin: china
Brand Name: hawit
Certification: ISO9001 CE
Model Number: Great
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Boxes,Vacuum Aluminum Packing
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Features: More Stable,longer Lifetime,factory Price Warranty: 1 Years
Voltage: 220V/50HZ Application: Grains,Agriculture Products & Industrial Products
Weight: 1460 Kg Power: 4.1 Kw
Dimension(l*w*h): 2854*1574*2090 Condition: New
Sorting Accuracy(%): >99.9 Optical Parts: CCD Cameras , LED Lamps
High Light:

2854mm Color Sorter Machine

,

4.1kw Color Sorter Machinse

,

4.1KW Grain Color Sorter Machines

Great-6 Grain Color Sorter Machine , High Performance Sensors Fast Detection



Color Sorter Introduction:



1.  Raw Material are put into the machine from its feeding hopper on the top.
2.  Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate
3.  camera will scan and computing the falling materials .
4.  According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.





FOCUS 1:
5400Pixel CCD Image Acquisition System with high precision allows high definition identification and high speed sorting.
Most advanced ccd technology can sort materials accurately.
FOCUS 2:
mechanical ejector with scientific design can make machine work stably for long time.
A new type of high frequency valve allows for low consumption of electricity , long life reaction speed, high durability, easy maintenance, and improved color accuracy.
FOCUS 3:
Humanized touch panel, easy to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly.
High quality processing technology, defects of 0.04mm2 can be detected.
FOCUS 4:
Configuration of the special light source allows for ten million kinds of color sorting with a fully adjustable colourspectrum.
Materials can be sorted according to different configurations which is suitable for various sizes of sorting, no need to change the light source.



Components Suppliers:

Camera   Toshiba Full Color Camera CCD with 5400 pixel
Lens   Phoenix customized industrial lens
Chip   Intel and ATI brand DSP,FPGA
Power supply   Mean Well
Power switch   Schneider
Filter   SMC



Sorting Applications



Fast Detection 4.1kw 2854mm Color Sorter Machine 0






Color Sorter Applications
Beans kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea green tea/black tea/dark tea/white tea/ yellow tea
Cereals corn/barley/wheat/oat/sesame/malt
Seeds cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Industrial Goods quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic Crops raisin/medlar/lily/red date/shrimp bran/tobacco/agaric
