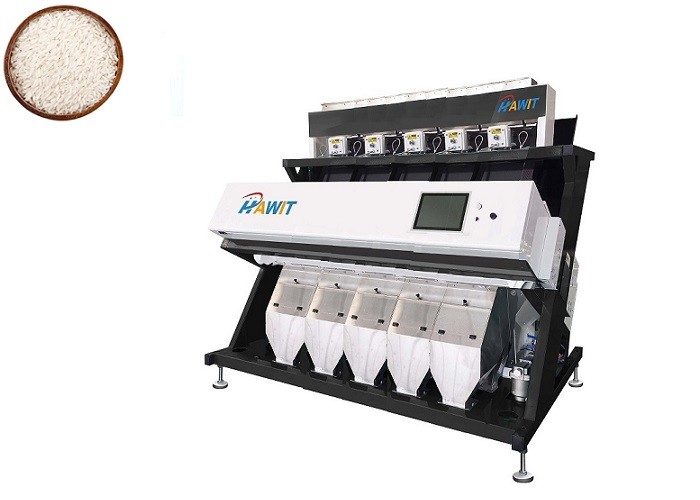

Stability Matrix Ejectors Rice Color Sorter 99.9% Accuracy

Stability Matrix Ejectors Rice Color Sorter 99.9% Accuracy

  • Stability Matrix Ejectors Rice Color Sorter 99.9% Accuracy
Stability Matrix Ejectors Rice Color Sorter 99.9% Accuracy
Product Details:
Place of Origin: China
Brand Name: Hawit
Certification: ISO9001 CE
Model Number: Spire
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Boxes,Vacuum Aluminum Packing
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Type: Rice Color Sorter Machine Model: Spire 5
Channels: 315 Light Source: All LED Lamps
Sorting Accuracy(%): ≥99.9% Voltage: 220V 50HZ
Capacity: 4~8 T/h Weight: 1260 Kg
Power: 3.0 Kw Dimension(l*w*h): 2226*1574*2090 Mm
High Light:

Matrix Ejectors Rice Color Sorter

,

All LED Lamps Rice Color Sorter

,

99.9% Accuracy Rice Color Sorter

Reliability And Stability Matrix Ejectors Rice Color Sorter



HIGH RELIABILITY

• The mechanical structure is designed for reliability and stability for any product. • Introducing a cooling system to improve the service life and stability of the machine.

• The electrical and optical design system is meant for simplicity and efficiency, this optimized system reduces the complexity of the machine and improve its reliability



HIGH QUALITY 5K CAMERA

• Use of 5400 pixel high speed, high resolution linear CCD camera and high precision dedicated lens to receive image, enable 2 distinguishing the hetero-chromatic defects upto 0.07 mm accurately.

• Matching the optimum illumination brightness according to marital characteristic, shadow-less lighting.



HIGH QUALITY MATRIX EJECTORS

High quality, high frequency, long service life ejectors with super low air consumption guarantees consistent performance ensuring highest capacity and excellent rejection output.



HIGH QUALITY AIR FILTER SYSTEM

Extraordinary Performance Due to "Tone" Fresh



MULTIDIMENSIONAL STEREO SPECIALIZATION ALGORITHMS

• Our unique intelligent image processing algorithms processes large region light yellow and tiny spots, Needle – size black specks etc effectively and efficiently to improve sorting accuracy.

• Unique Recognition Algorithms for Color, Shape. Texture and Angle Comprehensive, multidimensional due to professional so powerful



HIGH QUALITY IMAGE PROCESSING SYSTEM

Advanced image acquisition system, new generation of ARM, FPGA processor technology from USA, Arithmetic speed will be much faster = excellent elimination rate



EASY OPERATION SCREEN

Simple optical system design with optical system combined with user friendly human-machine interface enables simple operation so that minimal skilled operator can operate the machine.


Technical Parameters



Model Throughput(t/h) Channel
number
Sorting
Accuracy(%)
Power
(kw)
Power Supply Demension L*W*H(mm)

Weight
(kg)

Mini-1 0.5 ~ 0.9 64 >99 1.0 100-220V/50HZ-60HZ 1465*1764*2341 365
Spire-4 3 ~ 6 256 >99.99% 2.4 100-220V/50HZ-60HZ 2232*1764*2341 1000
Spire-5 4 ~ 8 320 >99.99% 3.0 100-220V/50HZ-60HZ 2564*1764*2341 1260
Spire-6 5 ~ 8 384 >99.99% 3.6 100-220V/50HZ-60HZ 2860*1764*2341 1420
Spire-7 5 ~ 10 448 >99.99% 4.1 100-220V/50HZ-60HZ 3174*1764*2341 1520
Spire-8 8 ~ 12 512 >99.99% 4.7 100-220V/50HZ-60HZ 3488*1764*2341 1740
Spire-10 10 ~ 16 640 >99.99% 5.4 100-220V/50HZ-60HZ 4116*1764*2341 2120







































Sorting examples



Color Sorter Applications
Beans kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea green tea/black tea/dark tea/white tea/ yellow tea
Cereals corn/barley/wheat/oat/sesame/malt
Seeds cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Industrial Goods quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic Crops raisin/medlar/lily/red date/shrimp bran/tobacco/agaric

Stability Matrix Ejectors Rice Color Sorter 99.9% Accuracy 0



After Sales Services
Free software upgrade services for our customers lifelong.
One year warranty and free maintenance.
Engineers available to service machinery overseas.



Packaging & Shipping

Inner packing is vaccuum-packed with aluminum foil.

External packing is fumigation-free wood packages.

Suit for long sea voyage.



Our Services :



We adhere to the principle of Customer priority, encourage employees to care about customer demand, and provide solutions for both domestic and overseas customer.



We provide customer with one year free repair and maintenance for complete machine, and prompt professional training and technical guidance, which fully embodies our service mode featuring fast response, timely maintenance and follow-up coordination.



Service commitment: One year free repair and maintenance for complete machine, 7x24h consultation service .No matter where you are, you can visit us .
