Product Details:
Place of Origin: china
Brand Name: hawit
Certification: ISO9001 CE
Model Number: Glory
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Boxes,Vacuum Aluminum Packing
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Type: Sesame Color Sorter Machine Model: Glory-4
Channels: 256 Light Source: All LED Lamps
Sorting Accuracy(%): ≥99.9% Voltage: 220V 50HZ
Capacity: 2~4 T/h Weight: 955 Kg
Power: 2.5 Kw Dimension(l*w*h): 2232*1764*2341
High Light:

256 Channels Sesame Color Sorter

,

High Resolution Sesame Colour Sorter

,

Sesame Colour Sorting Machine

Stable Performance Sesame Color Sorter Machine High Resolution Long Lifespan

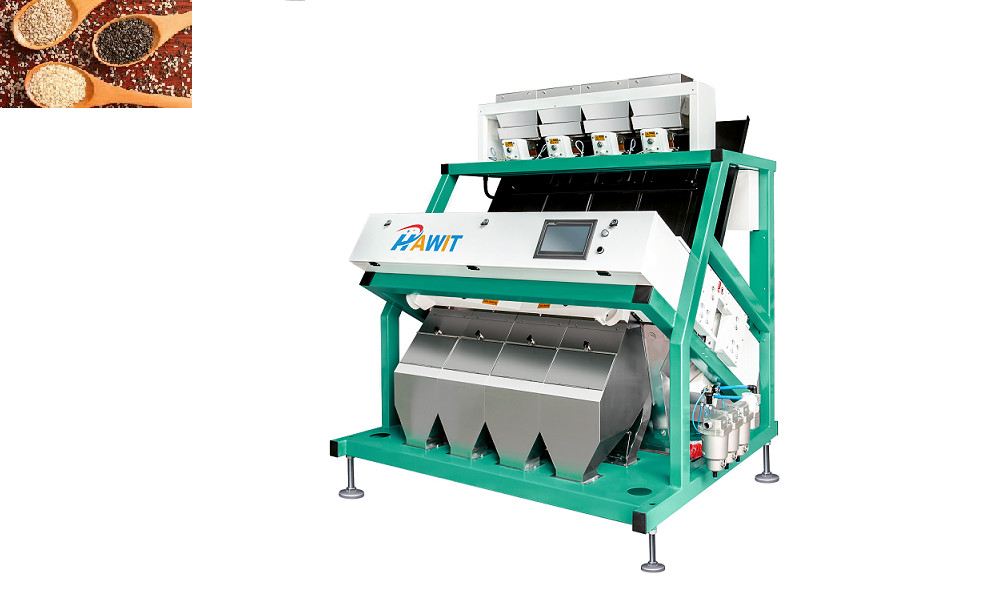

Grain Color Sorter Machine Introduction



Grain Color Sorter Machine uses CCD camera sensor for color sorting and grading by different color, shape and size of raw material. Color sorting machine can be applied in field of sesame sorting, grading and removal of impurity. sesame Color sorer is also named as CCD sesame optical sorter, sesame color sorting machine, spectrum sorting machine and sesame color cleaning machine.



Sesame Color Sorter Machine Technical Characteristics



1, 5400 pixels HD industry use CCD camera brings the sorting accuracy to 0.01mm²,easy to separate black spot and light yellow.

2, Advanced Micro Processing Technology + ARM + DSP + IOT extremely increases the sorting capacity to ensure your high producing ability.

3, Latest technology of LED system can satisfy thousands of colors identification,separation and classification requirements.

4, Data Synchronization System makes the adjustment work into the way of ONE BUTTON OPERATION.

5, Latest ejector technology import from Japan, the ejectors longer life time, lower air consumption, faster speed, easier maintenance and high sorting accuracy.

6, Special feeding system design makes each chutes separated and allows you to combine the chutes due to sorting requirements, decreases the rejection ratio and air consumption.




256 Channels Sesame Color Sorter Machine High Resolution Long Lifespan 0


Technical Parameters

Model Throughput(t/h) Channel
number
Sorting
Accuracy(%)
Power
(kw)
Power Supply Demension L*W*H(mm)

Weight
(kg)

Great-1 0.5 ~ 0.9 64 >99 1.0 110-220V/50HZ-60HZ 1465*1126*1560 365
Great-4 3 ~ 6 256 >99.99% 2.4 110-220V/50HZ-60HZ 1912*1574*2090 955
Great-5 4 ~ 8 320 >99.99% 3.0 110-220V/50HZ-60HZ 2226*1574*2090 1120
Great-6 5 ~ 8 384 >99.99% 3.6 110-220V/50HZ-60HZ 2540*1574*2090 1285
Great-7 5 ~ 10 448 >99.99% 4.1 110-220V/50HZ-60HZ 2854*1574*2090 1460
Great-8 8 ~ 12 512 >99.99% 4.7 110-220V/50HZ-60HZ 3168*1574*2090 1640
Great-10 10 ~ 16 640 >99.99% 5.4 110-220V/50HZ-60HZ 3796*1574*2090 2000





































Sorting examples










Color Sorter Applications
Beans kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea green tea/black tea/dark tea/white tea/ yellow tea
Cereals corn/barley/wheat/oat/sesame/malt
Seeds cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Industrial Goods quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic Crops raisin/medlar/lily/red date/shrimp bran/tobacco/agaric





After Sales Services
Free software upgrade services for our customers lifelong.
One year warranty and free maintenance.
Engineers available to service machinery overseas.





Packaging & Shipping

Inner packing is vaccuum-packed with aluminum foil.

External packing is fumigation-free wood packages.

Suit for long sea voyage.



Our Services :



We adhere to the principle of Customer priority, encourage employees to care about customer demand, and provide solutions for both domestic and overseas customer.



We provide customer with one year free repair and maintenance for complete machine, and prompt professional training and technical guidance, which fully embodies our service mode featuring fast response, timely maintenance and follow-up coordination.



Service commitment: One year free repair and maintenance for complete machine, 7x24h consultation service .No matter where you are, you can visit us .
