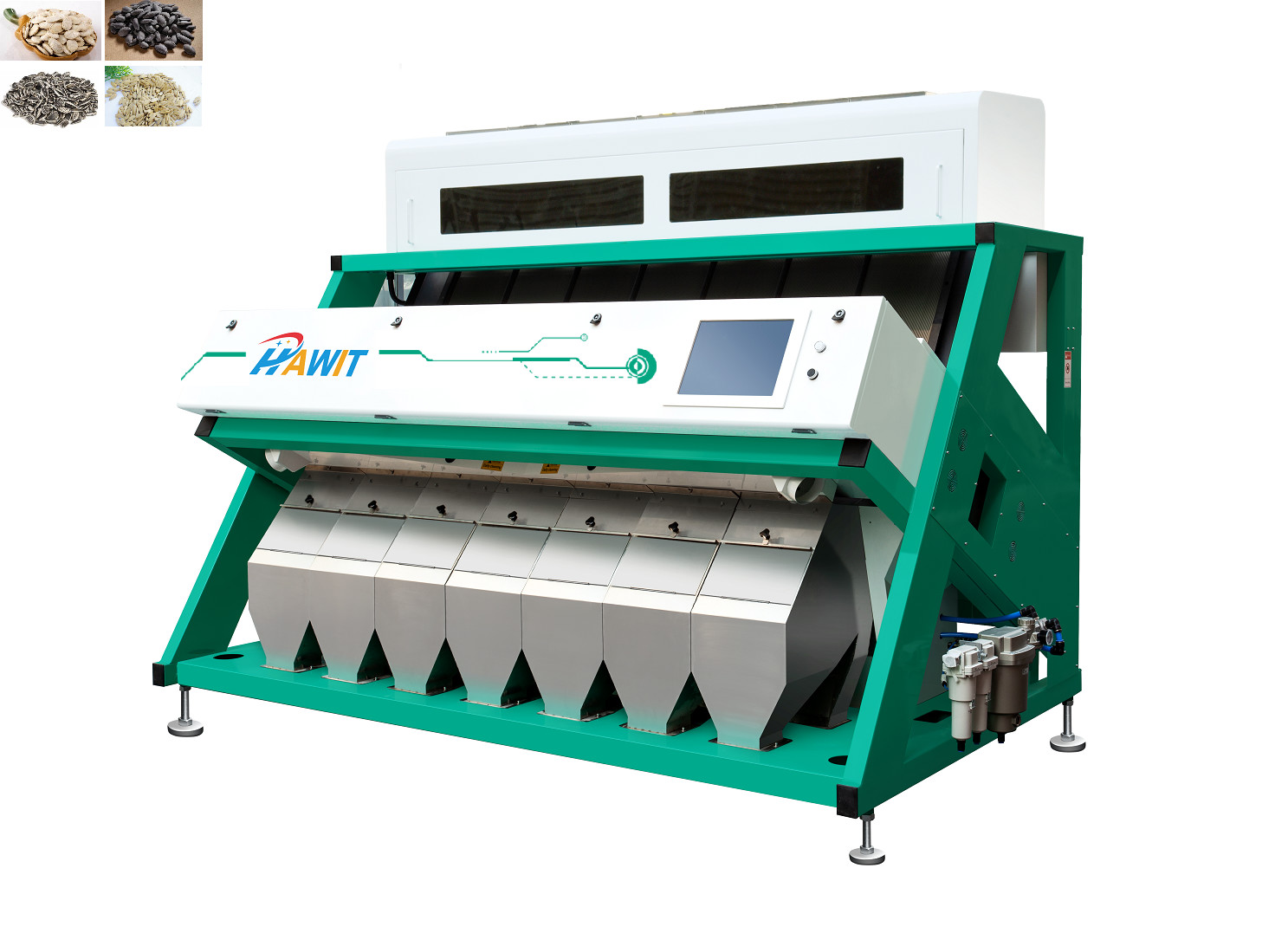

99.99 Accuracy 448 Channels Nuts Color Sorter With LED Lamps

99.99 Accuracy 448 Channels Nuts Color Sorter With LED Lamps

  • 99.99 Accuracy 448 Channels Nuts Color Sorter With LED Lamps
99.99 Accuracy 448 Channels Nuts Color Sorter With LED Lamps
Product Details:
Place of Origin: china
Brand Name: hawit
Certification: ISO9001 CE
Model Number: Glory
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Boxes,Vacuum Aluminum Packing
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Type: Nuts Color Sorter Machine Brand: Hawit
Channels: 448 Light Source: All LED Lamps
Sorting Accuracy(%): ≥99.9% Voltage: 100V-220V / 50HZ-60HZ
Capacity: 5~10 T/h Weight: 1460 Kg
Power: 4.1 Kw Dimension(l*w*h): 3174*1764*2341mm
High Light:

LED Lamps Nuts Color Sorter

,

448 Channels Nuts Color Sorter

,

10T/h Nuts Color Sorter

  >99.99 Sorting Accuracy 448 Channels Nuts Color Sorter

Color sorter machine working principle


  Color Sorters are machines used on the production lines in bulk food processing and other industries.They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.

In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the
valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of(0.6~0.8 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.



Technical Parameters

Model Throughput(t/h) Channel
number
Sorting
Accuracy(%)
Power
(kw)
Power Supply Demension L*W*H(mm)

Weight
(kg)

Glory-4 3 ~ 6 256 >99.99% 2.4 110-220V/50HZ-60HZ 1912*1574*2090 955
Glory-5 4 ~ 8 320 >99.99% 3.0 110-220V/50HZ-60HZ 2226*1574*2090 1120
Glory-6 5 ~ 8 384 >99.99% 3.6 110-220V/50HZ-60HZ 2540*1574*2090 1285
Glory-7 5 ~ 10 448 >99.99% 4.1 110-220V/50HZ-60HZ 2854*1574*2090 1460
Glory-8 8 ~ 12 512 >99.99% 4.7 110-220V/50HZ-60HZ 3168*1574*2090 1640





































Sorting examples





99.99 Accuracy 448 Channels Nuts Color Sorter With LED Lamps 0


Color Sorter Applications
Beans kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea green tea/black tea/dark tea/white tea/ yellow tea
Cereals corn/barley/wheat/oat/sesame/malt
Seeds cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Industrial Goods quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic Crops raisin/medlar/lily/red date/shrimp bran/tobacco/agaric





After Sales Services
Free software upgrade services for our customers lifelong.
One year warranty and free maintenance.
Engineers available to service machinery overseas.





Packaging & Shipping

Inner packing is vaccuum-packed with aluminum foil.

External packing is fumigation-free wood packages.

Suit for long sea voyage.



Our Services :



We adhere to the principle of Customer priority, encourage employees to care about customer demand, and provide solutions for both domestic and overseas customer.



We provide customer with one year free repair and maintenance for complete machine, and prompt professional training and technical guidance, which fully embodies our service mode featuring fast response, timely maintenance and follow-up coordination.



Service commitment: One year free repair and maintenance for complete machine, 7x24h consultation service .No matter where you are, you can visit us .
