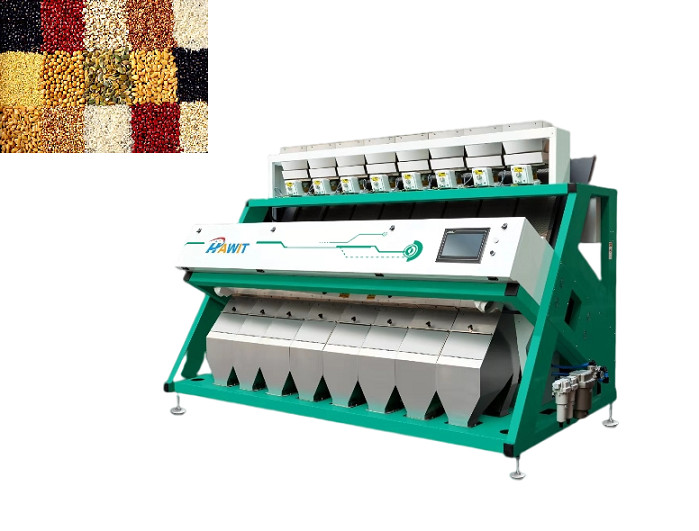

Intelligent Processing Automatic Peanut Color Sorter 220V 50HZ

Intelligent Processing Automatic Peanut Color Sorter 220V 50HZ

  • Intelligent Processing Automatic Peanut Color Sorter 220V 50HZ
Intelligent Processing Automatic Peanut Color Sorter 220V 50HZ
Product Details:
Place of Origin: china
Brand Name: hawit
Certification: ISO9001 CE
Model Number: Glory
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Boxes,Vacuum Aluminum Packing
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Type: Peanut Color Sorter Machine Model: Glory-8
Channels: 512 Light Source: All LED Lamps
Sorting Accuracy(%): ≥99.9% Voltage: 220V 50HZ
Capacity: 8~12 T/h Weight: 1640kg
Power: 4.7 Kw Dimension(l*w*h): 3488*1574*2090
High Light:

Automatic Peanut Color Sorter

,

Intelligent Processing Peanut Color Sorter

,

220V 50HZ Peanut Color Sorter

New Intelligent Processing Technology Peanut Color Sorter

Color Sorter Introduction:



1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate
3. camera will scan and computing the falling materials .
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.



Our Advantages



One Key Operation System
The user can set the color, shape, size and defect area of the material, and confirm the unqualified material, so that the machine can automatically set the sorting scheme of the material according to the principle of independent calculation, intelligent identification and intelligent sorting.



LED Light Control System
With advanced digital stepless automatic dimming technology, LED brightness can be automatically adjusted according to material sorting requirements and environmental changes. The best sorting performance will be obtained.



Remote Control System
hawit cloud service technology platform can provide real-time online tracking service monitoring and data collection for machine operation. It can realize remote control, operation, maintenance and software upgrade, and can detect and solve LED lamp, electronic, mechanical and adjustment problems





Self-Checking System
self-test system automatically checks the working status of the camera, control panel and background board, saving you the time to check all parts before each operation




Technical Parameters

Model Throughput(t/h) Channel
number
Sorting
Accuracy(%)
Power
(kw)
Power Supply Demension L*W*H(mm)

Weight
(kg)

Glory-1 0.5 ~ 0.9 64 >99 1.0 110-220V/50HZ-60HZ 1465*1126*1560 365
Glory-4 3 ~ 6 256 >99.99% 2.4 110-220V/50HZ-60HZ 1912*1574*2090 955
Glory-5 4 ~ 8 320 >99.99% 3.0 110-220V/50HZ-60HZ 2226*1574*2090 1120
Glory-6 5 ~ 8 384 >99.99% 3.6 110-220V/50HZ-60HZ 2540*1574*2090 1285
Glory-7 5 ~ 10 448 >99.99% 4.1 110-220V/50HZ-60HZ 2854*1574*2090 1460
Glory-8 8 ~ 12 512 >99.99% 4.7 110-220V/50HZ-60HZ 3168*1574*2090 1640
Glory-10 10 ~ 16 640 >99.99% 5.4 110-220V/50HZ-60HZ 3796*1574*2090 2000





































Sorting examples





Color Sorter Applications
Beans kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea green tea/black tea/dark tea/white tea/ yellow tea
Cereals corn/barley/wheat/oat/sesame/malt
Seeds cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Industrial Goods quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic Crops raisin/medlar/lily/red date/shrimp bran/tobacco/agaric









After Sales Services
Free software upgrade services for our customers lifelong.
One year warranty and free maintenance.
Engineers available to service machinery overseas.





Packaging & Shipping

Inner packing is vaccuum-packed with aluminum foil.

External packing is fumigation-free wood packages.

Suit for long sea voyage.



Our Services :



We adhere to the principle of Customer priority, encourage employees to care about customer demand, and provide solutions for both domestic and overseas customer.



We provide customer with one year free repair and maintenance for complete machine, and prompt professional training and technical guidance, which fully embodies our service mode featuring fast response, timely maintenance and follow-up coordination.



Service commitment: One year free repair and maintenance for complete machine, 7x24h consultation service .No matter where you are, you can visit us .
