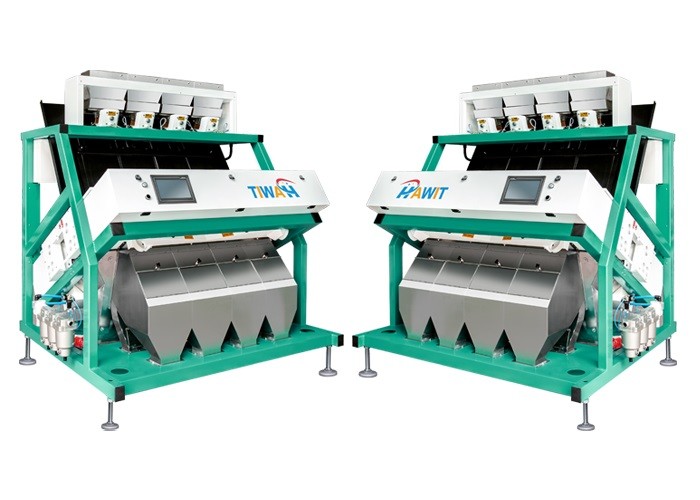

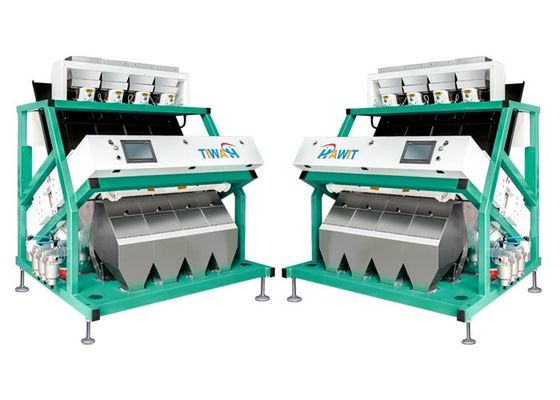

Image Analysis 1912mm 2.4kw Rice Color Sorter Machine

Image Analysis 1912mm 2.4kw Rice Color Sorter Machine

  • Image Analysis 1912mm 2.4kw Rice Color Sorter Machine
Image Analysis 1912mm 2.4kw Rice Color Sorter Machine
Product Details:
Place of Origin: china
Brand Name: hawit
Certification: ISO9001 CE
Model Number: Glory
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Boxes,Vacuum Aluminum Packing
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
After-sales Service Provided: Field Installation, Commissioning And Training Type: Rice Color Sorter
Warranty: 1 Years Condition: New
Color: Green Sorting Accuracy(%): >99.9
CCD Senso: Toshiba Filter: SMC
Light Source: All LED Lamps Place Of Origin: Anhui, China
High Light:

2.4kw Rice Color Sorter Machine

,

1912mm Rice Color Sorter Machine

,

1912mm Rice Colour Sorter Machine

Multifunctional Rice Color Sorter Machine Advanced Image Analysis System



color sorter work principle:

    The material to be sorted enters the color sorter from the hopper at the top. With the vibration of the vibrator, the materials to be sorted slide into the observation area of the separation chamber along the channel, and pass through the sensor and background plate. Under the light source, according to the light intensity and color changes, the system generates output signals to drive the operation of the solenoid valve, blowing particles of different colors into the waste bin of the loading hopper, and the good materials fall into the finished product bin of the charging hopper for sorting.



Technical advantages:



  • Apolar Intelligent Dimming light source​
  • High Quality 5K Camera
  • SMC Imported Ejector From Japan
  • SMC Air Filter System From Japan
  • Multidimensional Stereo Specialized Algorithms
  • High Quality Image Processing System
  • Easy Operation Screen
  • Fully Covered Dust Cleaning and Vacuum Cleaning System



Sorting Applications



Image Analysis 1912mm 2.4kw Rice Color Sorter Machine 0





Technical Parameters:

Model Throughput(t/h) Channel
number
Sorting
Accuracy(%)
Power
(kw)
Power Supply Demension L*W*H(mm) Weight
(kg)
Glory-1 0.5 ~ 0.9 64 >99 1.0 110-220V/50HZ-60HZ 1465*1126*1560

365

Glory-4 3 ~ 6 256 >99.99% 2.4 110-220V/50HZ-60HZ 1912*1574*2090 955
Glory-5 4 ~ 8 320 >99.99% 3.0 110-220V/50HZ-60HZ 2226*1574*2090 1120
Glory-6 5 ~ 8 384 >99.99% 3.6 110-220V/50HZ-60HZ 2540*1574*2090 1285
Glory-7 5 ~ 10 448 >99.99% 4.1 110-220V/50HZ-60HZ 2854*1574*2090 1460
Glory-8 8 ~ 12 512 >99.99% 4.7 110-220V/50HZ-60HZ 3168*1574*2090 1640
Glory-10 10 ~ 16 640 >99.99% 5.4 110-220V/50HZ-60HZ 3796*1574*2090 2000
