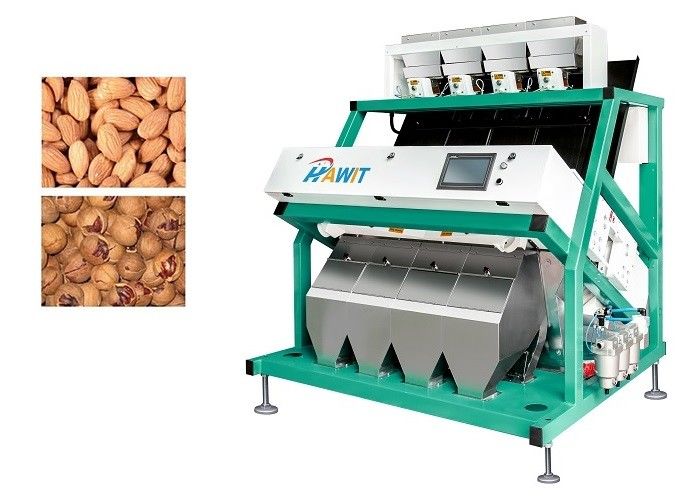

Grains Infrared Sorting Machine

Grains Infrared Sorting Machine

  • Grains Infrared Sorting Machine
Grains Infrared Sorting Machine
Product Details:
Place of Origin: china
Brand Name: hawit
Certification: ISO9001 CE
Model Number: IR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Boxes,Vacuum Aluminum Packing
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Model: IR-4 Type: Infrared Color Sorting Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas,commissioning And Training,Video Technical Support Warranty: 1 Year
Voltage: 220V/50HZ Power: 3.4 Kw
Capacity: 3-6 T/h Channels: 256
Weight: 955KG Dimension: 1912*1574*2090
High Light:

Grains Infrared Sorting Machine

,

955KG Infrared Sorting Machine

,

1912mm Infrared Colour Sorters

  Stable High End Infrared Sorting Machine For Grains / Plastic / Glasses Processing Industry



Core System



One Key Operation System



The user can set the color, shape, size and defect area of the material, and confirm the unqualified material, so that the machine can automatically set the sorting scheme of the material according to the principle of independent calculation, intelligent identification and intelligent sorting.



Visual Image Capture System



It can realize the visual dynamic image capture system by adopting the high resolution full color CCD sensor and begeye low distortion lens.



LED Light Control System



With advanced digital stepless automatic dimming technology, LED brightness can be automatically adjusted according to material sorting requirements and environmental changes. The best sorting performance will be obtained.



Self-Checking System



self-test system automatically checks the working status of the camera, control panel and background board, saving you the time to check all parts before each operation



Remote Control System



hawit cloud service technology platform can provide real-time online tracking service monitoring and data collection for machine operation. It can realize remote control, operation, maintenance and software upgrade, and can detect and solve LED lamp, electronic, mechanical and adjustment problems.





Infrared Color Sorter Machine Introduction



     The infrared color sorter adds single or multiple infrared cameras to the visible camera. The infrared light source is used to irradiate the material to identify the material difference of the whole material, so as to realize the separation



Application scenarios:



1. Remove quartz sand with the same color and shape from rice



2. Remove the shell from the kernel and shell from the kernel



3. Remove white quartz sand, transparent glass, white plastic, white tie, white metal, white desiccant and other malignant impurities



4. Remove the impurities such as nut shell, stem, stone and soil block from the nut kernel. It is very suitable for almond, almond, hickory, big walnut, pecans, macadamia nut, hazelnut, chestnut, pistachio, peanut, sunflower seed and other materials



Technical Parameters



Model Throughput(t/h) Channel
number
Sorting
Accuracy(%)
Power
(kw)
Power Supply Demension L*W*H(mm) Weight
(kg)
IR-4 3 ~ 6 256 >99% 3.4 110-220V/50HZ-60HZ 1912*1574*2090 955
IR-5 4 ~ 8 320 >99% 4.0 110-220V/50HZ-60HZ 2226*1574*2090 1120
IR-6 5 ~ 8 384 >99% 4.6 110-220V/50HZ-60HZ 2540*1574*2090 1285
IR-7 5 ~ 10 448 >99% 5.1 110-220V/50HZ-60HZ 2854*1574*2090 1460





























Color Sorter Applications
Beans kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea green tea/black tea/dark tea/white tea/ yellow tea
Cereals corn/barley/wheat/oat/sesame/malt
Seeds cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Industrial Goods quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic Crops raisin/medlar/lily/red date/shrimp bran/tobacco/agaric




Packaging & Shipping



Inner packing is vaccuum-packed with aluminum foil.



External packing is fumigation-free wood packages.



Suit for long sea voyage.





After Sales Services



Free software upgrade services for our customers lifelong.



One year warranty and free maintenance.



Engineers available to service machinery overseas.



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock

Q: Is engineer oversea service available?

A:Yes, Professional after-sales engineer is available to end-user's site for training & machine installation .

Q: Can we send samples for test?

Sample material for testing use is welcome. a working video will be offered for sorting result inspection.
